Poultry House Insulation

Poultry House Insulation with Spray Foam: Equipment and Application Guide

Insulation is the single biggest lever a poultry grower has over fuel bills, bird welfare, and house longevity. A broiler, layer, or breeder house must hold a tight temperature band while thousands of birds add heat, moisture, and ammonia to the air. Every gap in the sidewall, ceiling, or end wall leaks conditioned air, drives up propane and electricity use, and lets condensation form on cold surfaces. This is why closed-cell spray polyurethane foam (SPF) has become the standard insulation for modern poultry houses, and why the spray foam machine you run decides whether the foam goes on at the right density and thickness.

This page explains where spray foam poultry house insulation is used, how it is applied, and what equipment you need. Pioneer Spray manufactures the high-pressure, heated plural-component machines that agricultural applicators rely on for poultry barn insulation, including the hydraulic JYYJ-H600PK.

Why Closed-Cell Spray Foam Is the Standard for Poultry Houses

Poultry house envelopes have demands that batt, board, and curtain systems struggle to meet. Spray polyurethane foam is applied as a liquid that expands and cures in seconds, forming a continuous insulating layer bonded directly to steel, wood, or block. For agricultural service the closed-cell variant is preferred because its sealed cells resist moisture, washdown, and vapor drive.

• Cuts heating and cooling cost. A continuous, air-sealed foam envelope sharply reduces a poultry house's heating and cooling load. Older curtain-sided and loose houses can burn 15 to 25 percent more fuel in winter for want of a tight, insulated shell, as documented by Mississippi State University Extension.
• Stops condensation and sweating. By keeping interior surface temperatures above the dew point, closed-cell foam stops the dripping ceilings and wet litter that raise ammonia, disease pressure, and footpad lesions.
• High R-value per inch. Closed-cell polyurethane foam delivers among the highest thermal resistance of any sprayable material, roughly R-6 to R-7 per inch, so growers hit target performance with a thin, space-saving layer. The Poultry Site notes an older house can be spray-foamed into a tight, well-insulated building within hours.
• Seamless air barrier. Sprayed in place, the foam seals every seam, fastener, and penetration, eliminating the air leakage and thermal bridging that plague batt and board insulation in agricultural buildings.
• Pest, rodent, and moisture resistance. A monolithic closed-cell layer denies rodents, insects, and wild birds the cavities and nesting gaps that fibrous insulation invites, and it resists the washdown moisture of a hygienic poultry operation.

Closed-Cell vs Open-Cell for Poultry Barns

Open-cell foam is lighter and cheaper, but it is vapor-permeable and absorbs water, which is a liability in a humid, washdown poultry environment. Closed-cell spray polyurethane foam, typically applied around 32 kilograms per cubic meter (about 2.0 pounds per cubic foot) for agricultural work, gives the moisture resistance, air sealing, and rigidity a poultry house needs. It is the correct choice for sidewalls, ceilings, and end walls in broiler, layer, and breeder barns.

Where Poultry Spray Foam Is Used

The Poultry House Spray Foam Application Process

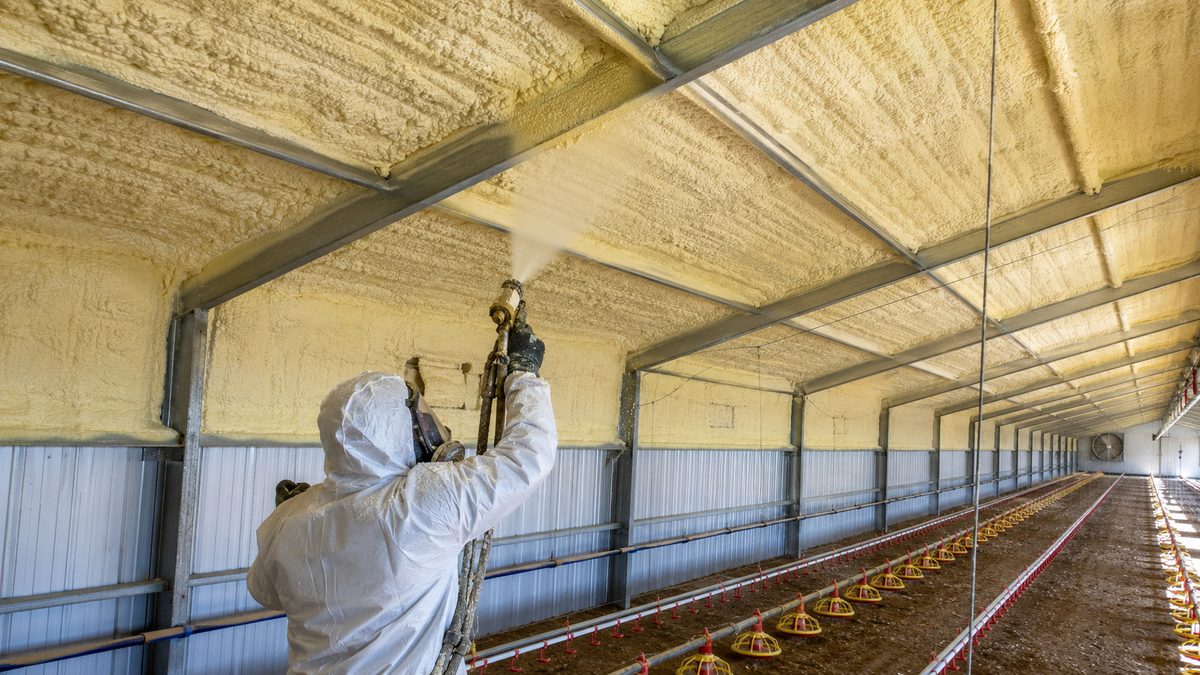

Spraying closed-cell foam for a poultry house is a controlled, two-component chemical process. Results depend on substrate preparation, accurate machine settings, and disciplined technique.

• 1. Substrate preparation. Sidewalls, ceilings, and end walls are cleaned of dust, manure residue, and loose material. Steel, wood, and block are checked for moisture, and ambient and substrate temperatures are confirmed against the foam manufacturer specification.
• 2. Machine setup. The plural-component machine heats the A-side (isocyanate) and B-side (polyol resin) to the recommended temperature and pressurizes both to spec. Proportioning must stay on ratio, and hose heat must hold the chemicals at the right viscosity all the way to the gun.
• 3. Spray to target thickness and density. Foam is applied in controlled lifts, allowing each pass to rise and cure. Poultry work commonly targets a closed-cell density around 32 kilograms per cubic meter, built up to the sidewall and ceiling thickness the thermal design requires.

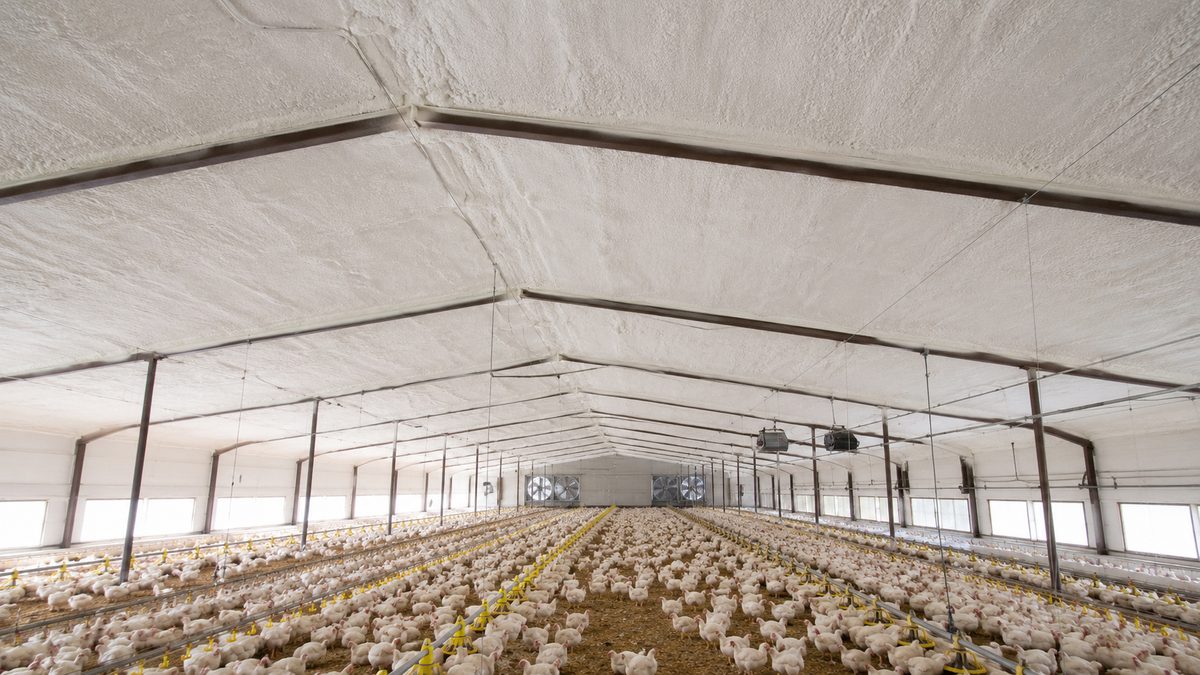

• 4. Cure and inspection. The foam cures within minutes to a hard, closed surface. Crews verify thickness, check for voids or pinholes, and confirm a continuous monolithic layer with no exposed substrate before any thermal-barrier or finish coat is applied.

The Equipment You Need: High-Pressure Plural-Component Machines

Agricultural closed-cell foam cannot be applied with low-pressure or unheated equipment. It requires a high-pressure, heated, plural-component spray foam machine that holds precise temperature, pressure, and a consistent A-to-B ratio. If the ratio drifts or the chemical is sprayed cold, the foam comes out off-spec, with poor density and weak adhesion, exactly what fails an inspection and wastes material on a long house.

Pioneer Spray builds JYYJ-series machines for this work, operating in the 25 to 36 MPa range needed to atomize and mix high-viscosity polyurethane reliably. For the large surface areas of broiler, layer, and breeder houses, the hydraulic JYYJ-H600PK delivers the stable pressure, integrated heating, and high daily output that make long-house insulation fast and uniform. Matching the machine, hose, and gun to your house size and chemical system is the difference between a one-day job and constant rework.

Not sure which JYYJ model fits your poultry operation, chemical supplier, or jobsite power supply? Contact our engineers and we will recommend a configuration based on your house dimensions and target foam density.

Frequently Asked Questions

How much can spray foam cut a poultry house's fuel bill?

A tight, air-sealed closed-cell foam envelope can sharply reduce heating and cooling load. Older curtain-sided or loose houses lacking a continuous insulated shell can use 15 to 25 percent more heating fuel in winter, so retrofitting with spray foam typically delivers large propane and electricity savings across each flock.

What foam thickness and density are typical for a poultry house?

Agricultural closed-cell spray foam is commonly applied around 32 kilograms per cubic meter (about 2.0 pounds per cubic foot). Thickness is set by climate and target R-value, with sidewalls and ceilings built up in controlled lifts to the level the thermal design requires.

Does spray foam help control condensation and ammonia in poultry barns?

Yes. By keeping interior surfaces above the dew point, a continuous closed-cell layer stops condensation, dripping, and wet litter. Drier litter means lower ammonia, less disease pressure, and better bird welfare and footpad health.

Can I insulate a poultry house with a low-pressure foam kit?

No. Closed-cell agricultural foam needs a high-pressure, heated, plural-component machine to maintain correct temperature, pressure, and mixing ratio across the large area of a poultry house. Low-pressure kits cannot deliver consistent density or adhesion at that scale, which is why a machine such as the JYYJ-H600PK is used.
